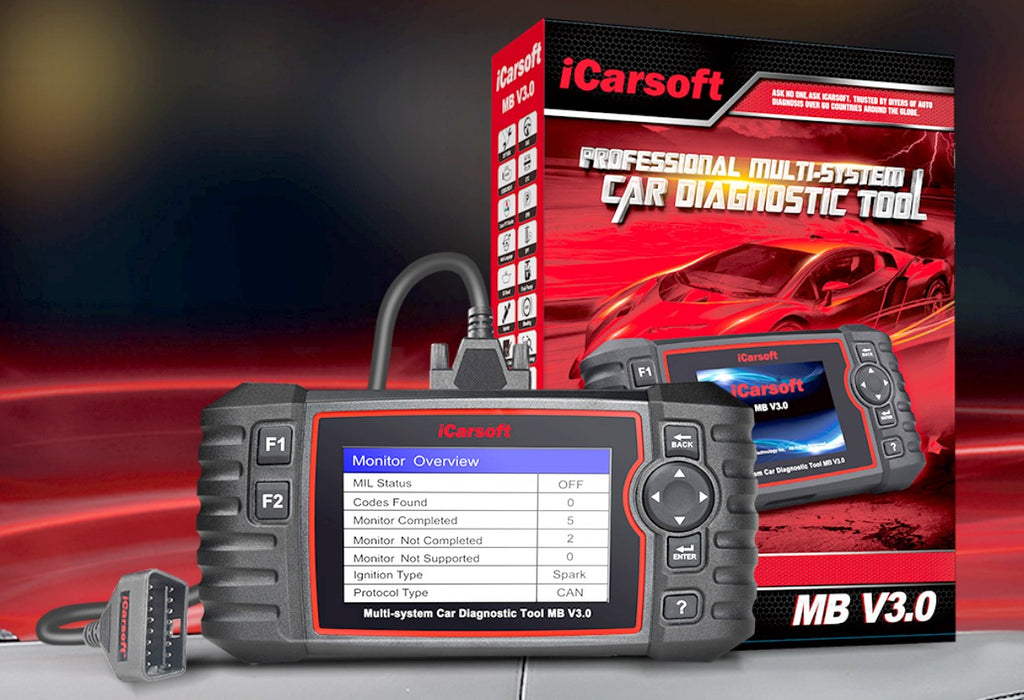

Mercedes-Benz Sprinter Smart Professional Diagnosis Scanner iCarsoft MB V3.0

Mercedes-Benz Sprinter Smart Professional Diagnosis Scanner iCarsoft MB V3.0

$359.99

MB V3.0 is a Professional and powerful vehicle fault diagnosis tool for Mercedes-Benz Sprinter and Smart, developed by iCarsoft Technology Inc. It features full ECU diagnosis with test modes: Can-bus, ISO9141, KWP2000, and J1850 etc.

FEATURES:

  1. MB v3.0 can do it all: read and clears trouble codes on most/all systems including engine, transmission, ABS and airbag, etc.
  2. Support OBD2 EOBD2 10 modes of operation.
  3. Full ECU diagnosis
  4. Display live data in text, graphic and analog for easy data review
  5. Auto retrieve VIN: identifying model and year of vehicles
  6. Actuation test (or bi-directory test): Used to access vehicle specific sub-system and component tests
  7. Support freeze frame data
  8. Oil light service reset
  9. Electric Parking Brake (EPB): System maintenance deactivates and reactivates for replacement and initialization
  10. Fuel pump activation: Activate when replacing a new pump
  11. Air filter self-learning process after replacing filter
  12. Diesel Particular Filter (DPF): Regeneration control system, requests DPF regeneration process while DPF blockage and turn off the DPF indicator
  13. Electric Throttle Control (ETC): relearn throttle valve control value while clear or replace the throttle value
  14. Steering Angle Sensor (SAS): Calibrates the steering wheel to straight ahead, or re-calibrates SAS while replacing steering parts
  15. ABS bleeding: Release air to restore ABS brake sensitivity, or re-learn while ABS sensor replaced
  16. Injector Coding: Relearn injector control parameter when injector renewed or replaced
  17. Body stability (BCM): Supports routine maintenance of DSC modules, for example, reset or delete adaptation values, start-up the unit
  18. Engine Control Module (ECM):Supports routine maintenance of engine modules, reset or delete adaptation values, calculate fuel consumption
  19. Transmission Control Module (TCM) adaptation: support routine maintenance of TCM, reset adaptation values, adjust the oil level
  20. Air Suspension: Reset electronic suspension air ride with the message system close all doors flip through message go to suspension reset or off
  21. Support TPMS programming service: Allows to look up tire sensor IDs from vehicle ECU, inputting TPMS sensor replacement IDs and testing the sebsors
  22. Air Conditioner Service (ACS): Supports maintenance of AC modules, for example, AC system adaption reset, reset AC compressor, run in AC compressor and stepper motor initialization
  23. Head Lamp Maintenance: Calibrate head lamp for maintenance and related operation including AFS setting
  24. Seat Calibration if repairing or replacing window lift moto
  25. Printing Data Function: print diagnosis data and generate test reports
  26. Battery Test: Getting battery voltage from OBD2 port
  27. DTC library to look up data
  28. Upgrade vis computer
  29. Multi-language support Note: Certain functions are limited by the car manufacturer due to requirement of a special factory access code



SPECIFICATIONS:

Display: 4.0″ TFT LCD, 480*320 Pixels

Operation Temperature: 0°C ~ 50°C

Storage Temperature: -20°C ~ 70°C

Operating Voltage: 9 ~ 18V

Operating Current: 150mA@12V

Power Consumption: 1.8W

Dimension: 206*104.1*32.6 mm
